                            Home > PGOPR > SS3-UCRG |

                  |


                  |






                              |
                     |











                      | Rated  Current |
                      Current Leakage (A) |
                      50MA ~ 600MA |


                      | DPR SS3- UCR30 |
                      3A ~ 30A |


                      | DPR SS3- UCR60 |
                      5A ~ 60A |


                      | DPR SS3- UCR120 |
                      10A ~ 120A |


                      | Time Set-up |
                      Operating  Time |
                       Time |
                      0.2sec ~ 30sec |



                      | Recover |
                      Manual(Immediate)/Electrical(Timely)  Recovery |


                      | Operating  Time Spec |
                      Fixed  Time |


                      | Error  Tolerance |
                      Current |
                      ¡¾15% |


                      | Time |
                      ¡¾25% |


                      | Operating  Power |
                      Voltage  2-Phase |
                      AC 90V ~ 260V |


                      | Frequency |
                      50 / 60§Ô |


                      | Contact  Support |
                      Type |
                      1-SPDT(1C) |


                      | Status |
                      Normal  Time Element (95 96 Close) |


                      | Rated  Current |
                      AC  250V / 3A Load Resistant |


                      | Power  Saving |
                      Resistance |
                      between  the outer port and the circuit |
                      Over  50§Û for DC 500V  Megger |


                      | Internal  Voltage |
                      between  the outer port and the circuit |
                      2.00kv  normal frequency for 1 min |


                      | between  contact points |
                      1.00kv  normal frequency for 1 min |


                      | between  circuitss |
                      2.00kv  normal frequency for 1 min |


                      | Operation  Environment |
                      Temperature |
                      Not in  Use |
                      -30¡É ~80¡É |


                      | When  Operating |
                      -20¡É ~65¡É |


                      | Humidity |
                      30~85%  RH with no dew condensation |


                      | Voltage  and Rated Current of Terminal |
                      Over  AC 250V 5A |


                      | Power Consumption |
                      Below  0.5W |


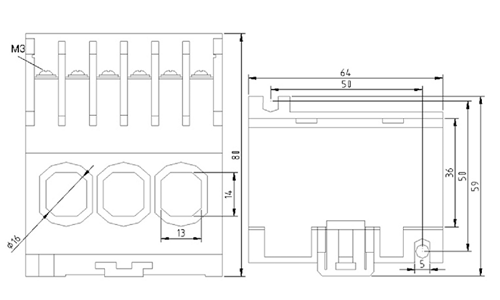

                      | Outer  Material |
                      35mm DIN-Rail / Panel  |





                      |


                    |   |


                      |


                    1. Check List Before Use  |


                    Please make sure that the product specifications are the same as  ordered.
Check to ensure that no damage has occurred during delivery, and  that there are no defects or missing items. |


                    2. Current Leakage Set-up  |


                    The Set-up is (50~600MA), and the delay time operates after the  TIME is passed.                        |


                    3. Operation Time Set-up  |


                    Current Shortage Delay Time: it notifies in advance in the event  that the load temperature goes down when the current flow is less than the set  current as the heater is disconnected.
Precise set-up is required, since it operates after the set TIME  is passed.? The operating time is as  marked on the scale of the control knob.
Leakage Operation: confirm it by turning off the yellow lamp.
Under Current Operating Time: by measuring the period of time from  the point at which the red lamp (O.L) is dimly illuminated, to when it is  turned on brightly.
                      (1) Set considering the operation of MC.
(2) Operation Time Set-up is controllable for SS3-UCRG TYPE: in a  range of 0~30 sec.
(3) Since the time is fixed, in the event of current shortage or  leakage operation, it will trip after the set TIME is passed from the moment  the red LED is illuminated.  |


                    4. Rated Current Set-up  |


                    (1) Turn the Current Control knob to the maximum setting, and operate  the heater.
(2) While operating, slowly turn the knob counter-clock wise. The  point at which the over current indicator red light (O.L) turns off is the  point at which the actual load current (100%) has been met.? From this point, turn the knob slightly  clockwise, so that the current is 130~140% of actual current.  |


                    | 5. To Confirm Operating |


                    (1) During leakage, the LED turns yellow and the red LED also  illuminates. When the set TIME is passed the power output is OFF.
                      (2) When only the power is on, if the TEST button is pressed, the under  current indicator lamp (U.L) illuminates dimly. After the set TIME is passed,  the red U.L is illuminated brightly, and then the power lamp is turned off as  it trips.
                      (3) When it is tripped, press the RESET button to recover the initial  state. The under current indicator lamp will then be turned off and the power  lamp will turn back on.  |


                    6. Circuit Breaker Chart  |


                      |


                   |

              |

          |

      |
      |
