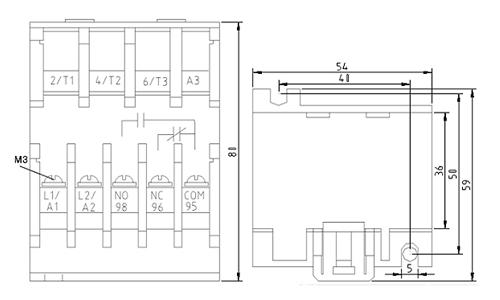

OVR
- Super Small
- Over-Current Circuit Breaker Lock    Protection
- Wide Range of Set-up
- Wide Range of Free Voltage
- Operation Indicator and Identification
   of  Actual Current (LED)
- Manual (Immediate) / Electrical    Recovery
- Hard Condition Resistant
- Super Economic in Power Saving

- Low Voltage Induced Electromotor    (440V Level) Protective Relay
- Break-Down Watch Current Relay
- Alternative Replacement for the    Existing Relay
- Separate Set-up for each Operation
   Delay / Operation Delay Time
- Over Current Protection - Operating    after the set up {O TIME}
- Circuit Breaker Protection - Operated    by Over Current
- Lock Protection - As soon as
    {O TIME}    is over
- Operating Current Identification
- Green (MONITOR) LED indicating Power    and Operation
- Red (TRIP) LED indicating Over Load    Status and Operation under Over    Loaded Power

Items Set-up Range

Time Set-up O-TIME 0.2sec ~ 30sec
Recover Auto/Manual(Immediate)/
Electrical(Timely) Recovery
Operating Time Spec Fixed Time
Error Tolerance Current ¡¾15%
Time ¡¾15%
Operating Power Voltage AC 110V 110V ~ 150V
AC 220V 220V ~ 300V
AC 380V 380V ~ 460V
Frequency 50 / 60§Ô
Contact Support Type 1-SPDT(1C)
Status Normal Time Element (95 96 Close)
Rated Current AC 250V / 3A Load Resistant
Power Saving Resistance between the outer
port and the circuit		 Over 50§Û for DC 500V Megger
Internal Voltage between the outer
port and the circuit		 2.0kv normal frequency for 1 min
between contact points 1.0kv normal frequency for 1 min
between circuits 2.0kv normal frequency for 1 min
Operation Environment Temperature Not in Use -30¡É ~80¡É
When Operating -20¡É ~65¡É
Humidity 30~85% RH with no dew condensation
Voltage and Rated Current of Terminal Over AC 250V 5A
Power Consumption Below 0.5W
Outer Material 35mm DIN-Rail / Panel


1. Check List Before Use

Please make sure that the product specifications are the same as ordered.
Check to ensure that no damage has occurred during delivery, and that there are no defects or missing items.
2. Operation Time Set-up

Precise set-up is required, as it operates after O-Time. The time is as marked on the control knob.
(1) Operating Time Set-up
O-TIME is controllable in a range of 0.2~30 seconds.
(2) It will trip when O-TIME is exceeded during a power surge while operating.
3. Rated Current Set-up

(1) Run the generator after setting up the required voltage by turning the voltage control knob.
(2) To determine the actual voltage while operating, slowly turn the knob counter-clock wise. The actual voltage (100%) has been met when the power surge indicating red lamp (O.L) turns off.
4. To Confirm Operating

(1) While the power is on, if the TEST button is pressed, the power surge indicator lamp on the generator protect relay (O.L) will dim, and then brighten after the set O-TIME has been reached, as the power lamp turns off and it trips.
(2) When it trips, press the RESET button. The power surge indicator lamp will turn off, and the initial state will be recovered.

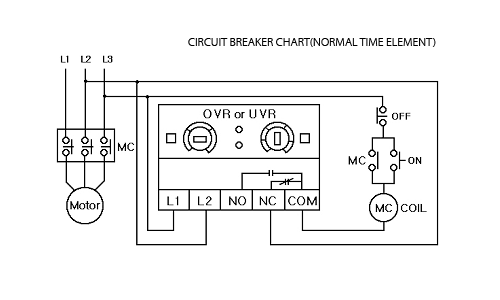

5. Circuit Breaker Chart
