- Super Small - Negative Frequency Circuit Breaker Protection - R-Phase Operation Indicator / L-Phase Operation Indicator and Separate Output of Relay - Hard Condition Resistant - Super Economic in Power Saving

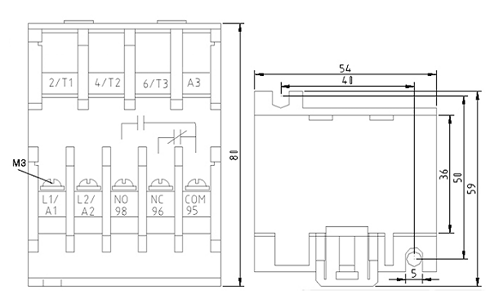

- Voltage System Negative Sequence and Circuit Breaker Protective Relay

- Negative Sequence Protection ? Immediate Operation - Circuit Breaker Protection ? Immediate Operation - Separate Indication of each R-Phase (Red LED) or L-Phase (Green LED) - Green LED for Separate Power Output of the Relay Contact - Red LED for Separate Power Output of the Relay Contact

Items

Set-up Range

Rating Voltage	PG NPR-220		AC220V
	PG NPR-440		AC380V/440V
Operating Time	Normal		Red LED for Separate Power Output of the Relay Contact
	Circuit Breaker		Green LED for Separate Power Output of the Relay Contact
Frequency			50 / 60㎐
Contact Support	Type		1-SPDT(1C)
	Status		Normal Time Element (95 96 Close)
	Rated Current		AC 250V / 5A Load Resistant
Power Saving	Resistance	between the outer port and the circuit	Over 50㏁ for DC 500V Megger
	Internal Voltage	between the outer port and the circuit	2.0kv normal frequency for 1 min
		between contact points	1.0kv normal frequency for 1 min
		between circuits	2.0kv normal frequency for 1 min
Operation Environment	Temperature	Not in Use	-30℃ ~80℃
		When Operating	-20℃ ~65℃
	Humidity		30~85% RH with no dew condensation
Power Consumption			Below 0.5W
Outer Material			35mm DIN-Rail / Panel

1. Check List Before Use

Please make sure that the product specifications are the same as ordered. Check to ensure that no damage has occurred during delivery, and that there are no defects or missing items.

2. Operation Time Set-up

(1) While only the R.S.T power is on, the red lamp will illuminate to indicate normal conditions, and the green lamp will illuminate for Negative Sequence. (2) When normal, the red lamp is on and the corresponding relay turns ON. If it is in negative sequence, the green lamp is on and the corresponding relay is turned ON. (3) For circuit breaker, green lamp is on and the corresponding relay is turned ON

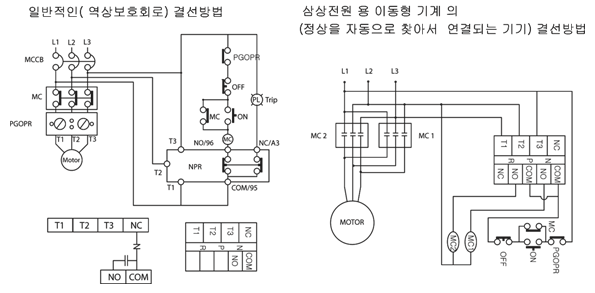

3. Circuit Breaker Chart
